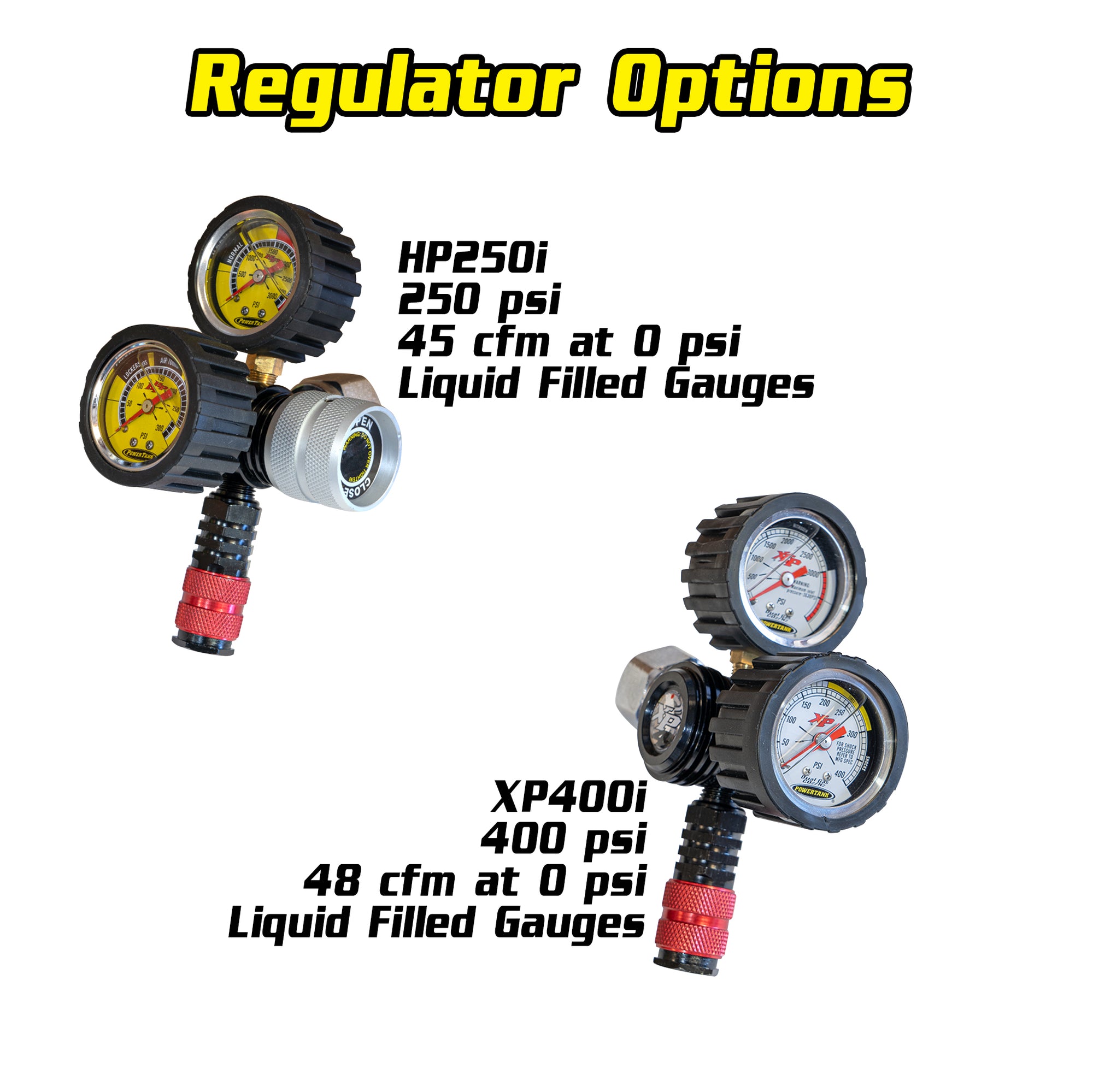

Regulator Options

You have a choice between a high pressure HP250i regulator with 250 psi max output or an extreme pressure XP400 regulator with 400 psi max output. Which one is right for you depends on what you will be using your Power Tank for.

Tire air up speed is determined primarily by flow rate or the cubic feet per minute (CFM) of the gas. The HP250i boasts a 45 cfm flow rate and the XP400 outputs 48 cfm. Not a large difference in tire air up speed between the two. A high-end compressor puts out 5-6 cfm for comparison.

Most air tools require between 100-150 psi to operate. Both Power Tank regulators are more than up to the task.

Both regulators are dual gas, meaning they work with both CO2 and nitrogen (N2). You would use your Power Tank regulator with N2 if you need to service shocks, hydraulic bump stops, or air struts.

The HP250i exceeds the needs of about 95% of our customers. Unless you have a specific use case for more than 250 psi output pressure, we recommend our tried and true HP250i.

Hose Options

All Power Tank hoses are specially made to handle the extreme pressures and low temperatures that comes from high-flow CO2. Our Super Flex hoses feature a co-extruded shell construction which captures a nylon weave between two separate layers of high durometer Durathane material for a 400 psi working pressure and 1200 psi burst pressure. With high-pressure swivels at both ends, this is the most high-tech a hose can get.

The 30 ft coiled hose will stretch from where your Power Tank is mounted in the back to the furthest corner of your Four Door Wrangler Unlimited. It is much faster to put away than the straight hose.

The 30 ft straight hose will reach a bit further without worrying about the coils catching on corners of your vehicle. It is also the preferred hose to use when working with air tools as it does not pull your tools away from you like a coiled hose would. The downside is the extra time it will take you to coil back up when you're done using it.

Depending on how you use your Power Tank, a 10 ft hose may be the best option. For longer vehicles like full-size pickups or RVs or set ups where you need to remove the Power Tank from its mount before use, the 10 ft hose is the least obtrusive of the three. Pair it with a Safety Series Tire Inflator with an extended hose whip to make airing up a cinch.

Hose Options

All Power Tank hoses are specially made to handle the extreme pressures and low temperatures that comes from high-flow CO2. Our Super Flex hoses feature a co-extruded shell construction which captures a nylon weave between two separate layers of high durometer Durathane material for a 400 psi working pressure and 1200 psi burst pressure. With high-pressure swivels at both ends, this is the most high-tech a hose can get.

The 10 ft coiled hose is the simplest to use when our 30 ft hose options are not long enough for your RV. The 10 ft hose is the least obtrusive and lightest which makes carrying your Power Tank from tire to tire easy. When combined with a Safety Series or a Big Kahuna Tire Inflator with a 6 ft hose whip, the combined 16 ft of length is the optimal way to reach your tire valve stems. No crouching, no lengthy hoses to get tangled up.

If you plan to use your Power Tank for more than topping up RV tires, a 30 ft hose, either coiled or straight, will help to increase the versatility of your Power Tank.

Coupler Options

Our standard Power Flow 3 Coupler is one of the nicest air tool couplers on the market. While most use 3 or 4 ball bearings to lock your tool, ours uses 8 balls for extra security under high pressures. Full aluminum construction with machined heat fins for better thermal transfer. It fits 1/4" industrial male plugs.

For a small upgrade price, you can step up to our Super Coupler (a $33 value). It's universal and accepts four different male plug types so it will take any air tool you encounter in the shop or on the trail. Even better than that, the Super Coupler features an internal bleed. This means that when you connect or disconnect your air tools, you're always doing it at 0 psi, despite having 250+ psi in your hose. You're never fighting pressure in the hose to clip in, and your tools aren't shooting off when you unplug them. They are so nice to use and reliable, that we have customers buying them in bulk to upgrade all the hoses in their shop and businesses.

Bracket Options

The Super Bracket included in all Power Tank Packages is the best way to hard mount your Power Tank. It features a full stainless steel construction with a lockable latch and rubber trim to protect your Power Tank's finish. Super Brackets are available in raw stainless steel or a satin black powdercoat and all come with a quick-release locking latch. The 5 lb Super Bracket works with most Power Tank 'Piggy-Back' secondary brackets like our vehicle specific JL Sports Bar Mount or Billet Roll Bar Clamps.

If you'd like to forgo hard mounting your Power Tank, choose a Padded Speed Bag instead of a bracket. It is constructed of durable ballistic nylon and features a pass-through and storage pocket for your hose. You won't be disappointed with the quality.

Bracket Options

The Super Bracket included in all Power Tank Packages is the best way to hard mount your Power Tank. It features a full stainless steel construction with a lockable latch and rubber trim to protect your Power Tank's finish. Super Brackets are available in raw stainless steel or a satin black powdercoat. The Super Bracket works with all Power Tank 'Piggy-Back' secondary brackets like our vehicle specific Wrangler mounts or Billet Roll Bar Clamps.

We also carry a Power Bracket for 10 and 15 lb Power Tanks. This is used for floor mounts and has pre-drilled holes on the bottom to attach it to the bed of your truck or a custom platform.

For high-speed off road driving, we offer COMP straps as an option for both brackets. The dual t-bolt stainless steel straps are much more secure than the standard quick release latch, at the expense of not being able to lock your Power Tank. These COMP straps are necessary if you drive faster than 35 mph off-highway or if you hang your Power Tank with all weight resting on the strap. They can be used in addition to the standard quick-release locking latch on our Super Bracket and can be added to your cart here.

Bracket Options

The Super Bracket included in all Power Tank Packages is the best way to hard mount your Power Tank. It features an aluminum frame, a stainless steel strap and lockable latch, and rubber trim to protect your Power Tank's finish. 20 lb Super Brackets are available in raw stainless steel or a satin black powdercoat. The Super Bracket works with all Power Tank 'Piggy-Back' secondary brackets like our BTS 4 Door Wrangler mounts or Billet Roll Bar Clamps.

For high-speed off road driving, we offer COMP straps as an option. The dual t-bolt stainless steel straps are much more secure than the standard quick release latch, at the expense of not being able to lock your Power Tank. These COMP straps are necessary if you drive faster than 35 mph off-highway or if you hang your Power Tank with all weight resting on the strap.

Bracket Options

The Super Bracket included in all Power Tank Packages is the best way to hard mount your Power Tank. It features a full stainless steel construction with a lockable latch and rubber trim to protect your Power Tank's finish. Super Brackets are available in raw stainless steel or a satin black powdercoat.

For high-speed off road driving, we offer COMP straps as an option for both brackets. The dual t-bolt stainless steel straps are much more secure than the standard quick release latch, at the expense of not being able to lock your Power Tank. These COMP straps are necessary if you drive faster than 35 mph off-highway or if you hang your Power Tank with all weight resting on the strap. They can be used in addition to the standard quick-release locking latch on our Super Bracket and can be added to your cart here. They are an either/or option on the Power Bracket.

Bracket Options

Please select whether you have a 2 Door JL or 4 Door JL Unlimited (JLU) then choose either a driver or passenger side mount. A driver side mount can not be used on the passenger side and vice versa. It is only available in Satin Black.

The included Super Bracket is upgraded to Satin Black Powdercoat to match the Sports Bar Mount at no cost ($11 value). It is lockable and features a quick release strap and rubber trim to protect your Power Tank's finish.

Bracket Options

The BTS Bracket is constructed out of aluminum and the Super Bracket is constructed out of stainless steel. We include stainless steel hardware for mounting. They are available in raw metal (silver) or Satin Black powdercoat.

The Super Bracket is lockable and features a quick release strap and rubber trim to protect your Power Tank's finish.

Bracket Options

Both the 20 lb Super Bracket and the BTS Bracket are constructed out of aluminum. We include stainless steel hardware for mounting. The 20 lb Super Bracket is only available in raw silver but the BTS can be optioned as raw silver or satin black powdercoat to offer some contrast.

The Super Bracket has two stainless steel straps and features two quick-release, lockable latches and rubber trim to protect your Power Tank's finish.

Roll Bar Clamp Options

For stock Sports Bars in CJ, YJ, TJ, JK, and JKU Jeep Wranglers, choose the Large Roll Bar Clamps.

Small Roll Bar Clamps fit 1.5", 1.75", and 2.0" dia tubing. Large Roll Bar Clamps fit 2.25" and 2.5" tubing.

Roll Bar Clamp Options

For most SxS Roll Cages, choose Small Roll Bar Clamps.

Small Roll Bar Clamps fit 1.5", 1.75", 1.875", and 2.0" dia tubing. Large Roll Bar Clamps fit 2.25" and 2.5" tubing.

Tire Inflator Options

We offer five gauge options on our Tire Inflators (TIGs). 0-60 psi liquid analog, 0-160 psi liquid analog, 0-60 psi digital, 5-150 psi digital, 0-100 psi Racer Series digital.

The analog gauges are liquid-filled with silicone which maintains a low viscosity when cold and prevents vibration damage from driving over varied terrain. The accuracy of the 0-60 psi analog gauge is +/-1.2 psi and the 0-160 psi analog gauge is +/-3.2 psi.

The digital gauges feature a backlit screen for easy reading in the dark. The LCD display also shows battery level. They operate off of two AAA batteries which are easily accessible. The digital gauges can be recalibrated. The digital gauges are twice as accurate as their analog counterparts; the 0-60 psi digital gauge is +/-0.6 psi and the 5-150 psi digital gauge is +/- 1.5 psi.

For unparalleled precision and accuracy, choose the Racer Series digital gauge. This gauge has +/-0.25 psi accuracy across the entire range; it's sensitive enough to read your own breath! Each Racer Series gauge has been tested for accuracy and comes with testing certification.

Standard or Safety Series

The standard whip option on Power Tank Tire Inflators is a stainless steel braided 2 ft hose whip long enough for most people to stand up fully while airing up, even when the tire valve stem is close to the ground.

For those wanting more length, we also offer a 6 ft stainless steel braided hose whip on our Safety-Series TIGs. The added length was originally intended for 'stand-away safety' when airing up high pressure RV and trailer tires in the rare event of a tire failure. The added hose length is also preferred simply because it makes the Tire Inflator easier to use and easier to read the gauges.

Tire Inflator Options

The Package C Power Tank comes standard with an upgraded Digital Tire Inflator Gauge, normally a $33 option, in your choice of 0-60 psi or 5-150 psi.

The digital gauges feature a backlit screen for easy reading in the dark. The LCD display also shows battery level. They operate off of two AAA batteries which are easily accessible. The digital gauges can be recalibrated. The digital gauges are twice as accurate as their analog counterparts; the 0-60 psi digital gauge is +/-0.6 psi and the 5-150 psi digital gauge is +/- 1.5 psi.

For unparalleled precision and accuracy, choose the Racer Series digital gauge. This gauge has +/-0.25 psi accuracy across the entire range; it's sensitive enough to read your own breath! Each Racer Series gauge has been tested for accuracy and comes with testing certification.

Standard or Safety Series

The standard whip option on Power Tank Tire Inflators is a stainless steel braided 2 ft hose whip long enough for most people to stand up fully while airing up, even when the tire valve stem as close to the ground.

For those wanting more length, we also offer a 6 ft stainless steel braided hose whip on our Safety-Series TIGs. The added length was originally intended for 'stand-away safety' when airing up high pressure RV and trailer tires in the rare event of a tire failure. The added length is also preferred by some for added ease of reading the gauge.

Tire Inflator Options

We offer four gauge options on our Tire Inflators (TIGs). 0-60 psi liquid analog, 0-160 psi liquid analog, 0-60 psi digital, 5-150 psi digital.

The analog gauges are liquid-filled with silicone which maintains a low viscosity when cold and prevents vibration damage from driving over varied terrain. The accuracy of the 0-60 psi analog gauge is +/-1.2 psi and the 0-160 psi analog gauge is +/-3.2 psi.

The digital gauges feature a backlit screen for easy reading in the dark. The LCD display also shows battery level. They operate off of two AAA batteries which are easily accessible. The digital gauges can be recalibrated. The digital gauges are twice as accurate as their analog counterparts; the 0-60 psi digital gauge is +/-0.6 psi and the 5-150 psi digital gauge is +/- 1.5 psi.

Power Tank RV Package all come standard with Safety Series Tire Inflators featuring an extended 6 ft hose whip. The added length was originally intended for 'stand-away safety' when airing up high pressure RV and trailer tires in the rare event of a tire failure. The added hose length is also preferred simply because it makes the Tire Inflator easier to use and easier to read the gauges.

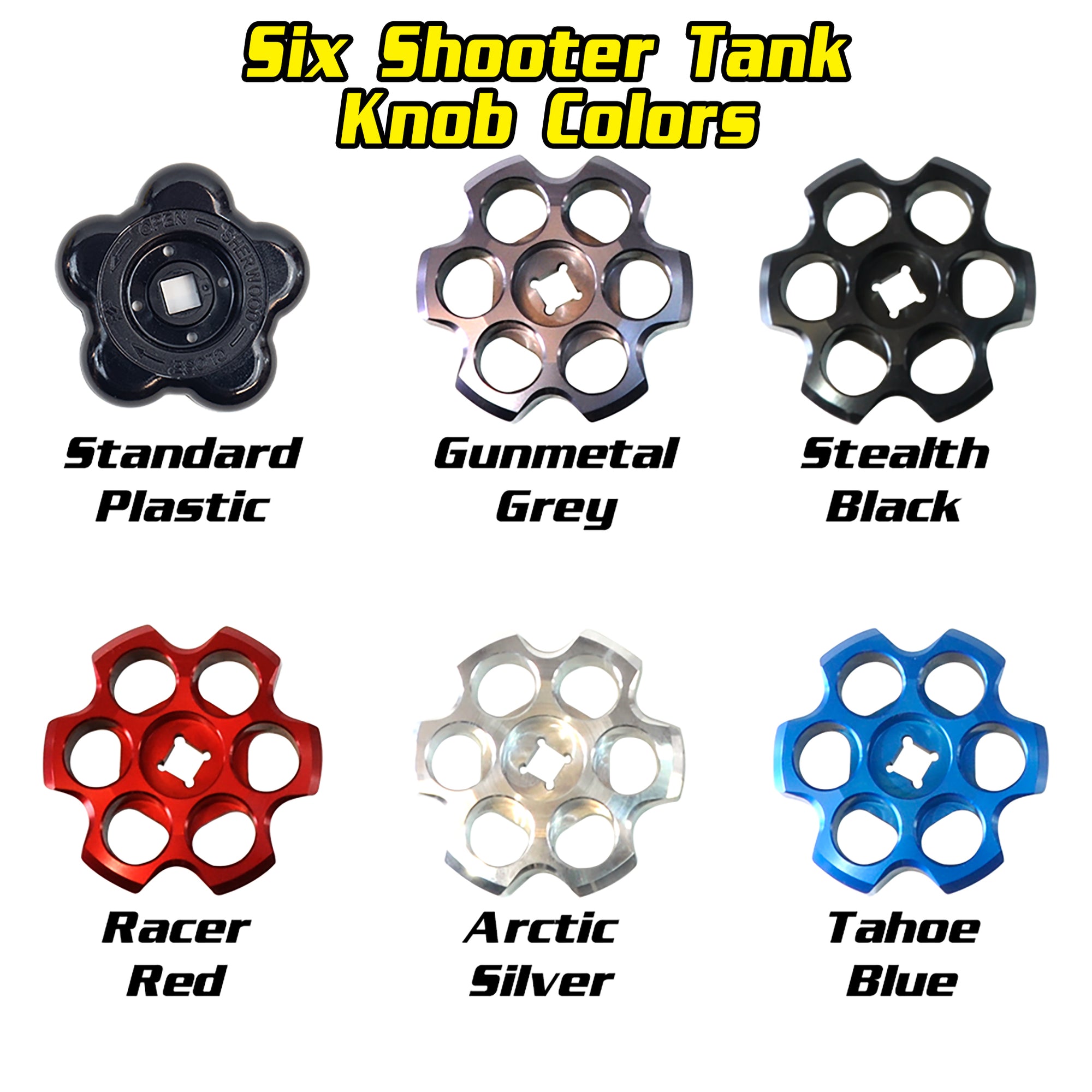

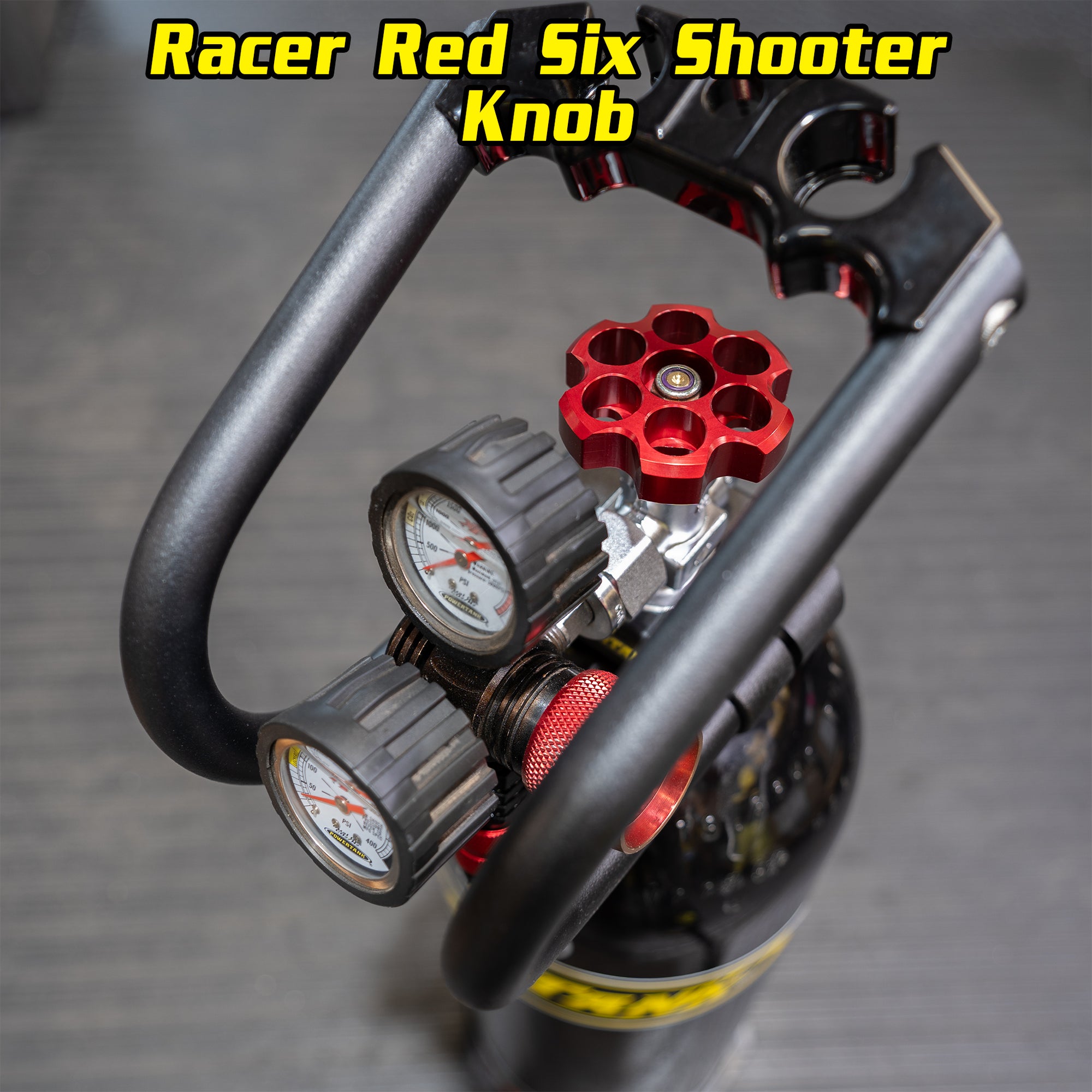

Six Shooter Tank Knob

Replace the plastic knob on the top of your Power Tank with one of our billet aluminum Six Shooter Tank Knobs. They are anodized in a variety of colors to give your Power Tank that extra touch of personalization and bad-assness that it deserves.

BTS Bag Add-On

The BTS Bag is a storage pouch designed to fit in the space created between your fender and the BTS Bracket. It is accessible by dropping your rear seat and sliding out. It is constructed of a durable ballistic nylon with a double zipper closure for easy access of tools and accessories. We keep our tire inflation tools inside but it is also great for emergency supplies, recovery gear, snacks, or whatever else you can think of.

If you add 10 psi If you add 15 psi If you add 20 psi
What's your tire size? sec/tire # of tires sec/tire # of tires sec/tire # of tires
275/70R16 16 sec. 21 24 sec. 15 32 sec. 10
295/70R17 18 sec. 20 27 sec. 15 36 sec. 10
285/75R17 18 sec. 20 27 sec. 15 36 sec. 9
33R12.50x17 19 sec. 19 29 sec. 14 38 sec. 9
305/70R17 20 sec. 18 30 sec. 13 40 sec. 9
315/70R17 21 sec. 17 32 sec. 12 42 sec. 8
35R12.50x17 20 sec. 16 30 sec. 12 40 sec. 8
35R12.50x15 22 sec. 14 33 sec. 10 44 sec. 7
37R12.50x17 25 sec. 14 38 sec. 10 50 sec. 7
40R13.50x17 30 sec. 11 45 sec. 8 60 sec. 5
40R15.50x22 32 sec. 10 48 sec. 7 64 sec. 5
42R14.50x17 36 sec. 9 54 sec. 6 72 sec. 4
If you add 10 psi If you add 15 psi If you add 20 psi
What's your tire size? sec/tire # of tires sec/tire # of tires sec/tire # of tires
275/70R16 16 sec. 42 24 sec. 31 32 sec. 21
295/70R17 18 sec. 40 27 sec. 30 36 sec. 20
285/75R17 18 sec. 40 27 sec. 30 36 sec. 20
33R12.50x17 19 sec. 38 29 sec. 28 38 sec. 19
305/70R17 20 sec. 36 30 sec. 27 40 sec. 18
315/70R17 21 sec. 34 32 sec. 25 42 sec. 17
35R12.50x17 20 sec. 32 30 sec. 24 40 sec. 16
35R12.50x15 22 sec. 28 33 sec. 21 44 sec. 14
37R12.50x17 25 sec. 28 38 sec. 21 50 sec. 14
40R13.50x17 30 sec. 22 45 sec. 16 60 sec. 11
40R15.50x22 32 sec. 20 48 sec. 15 64 sec. 10
42R14.50x17 36 sec. 18 54 sec. 13 72 sec. 9
If you add 10 psi If you add 15 psi If you add 20 psi
What's your tire size? sec/tire # of tires sec/tire # of tires sec/tire # of tires
275/70R16 16 sec. 63 24 sec. 47 32 sec. 31
295/70R17 18 sec. 60 27 sec. 45 36 sec. 30
285/75R17 18 sec. 60 27 sec. 45 36 sec. 30
33R12.50x17 19 sec. 57 29 sec. 42 38 sec. 19
305/70R17 20 sec. 54 30 sec. 40 40 sec. 27
315/70R17 21 sec. 51 32 sec. 38 42 sec. 25
35R12.50x17 20 sec. 48 30 sec. 36 40 sec. 24
35R12.50x15 22 sec. 42 33 sec. 31 44 sec. 21
37R12.50x17 25 sec. 42 38 sec. 31 50 sec. 21
40R13.50x17 30 sec. 33 45 sec. 24 60 sec. 16
40R15.50x22 32 sec. 30 48 sec. 22 64 sec. 15
42R14.50x17 36 sec. 27 54 sec. 20 72 sec. 13
If you add 10 psi If you add 15 psi If you add 20 psi
What's your tire size? sec/tire # of tires sec/tire # of tires sec/tire # of tires
275/70R16 16 sec. 84 24 sec. 63 32 sec. 42
295/70R17 18 sec. 80 27 sec. 60 36 sec. 40
285/75R17 18 sec. 80 27 sec. 60 36 sec. 40
33R12.50x17 19 sec. 76 29 sec. 57 38 sec. 38
305/70R17 20 sec. 72 30 sec. 54 40 sec. 36
315/70R17 21 sec. 68 32 sec. 51 42 sec. 34
35R12.50x17 20 sec. 64 30 sec. 48 40 sec. 32
35R12.50x15 22 sec. 56 33 sec. 42 44 sec. 28
37R12.50x17 25 sec. 56 38 sec. 42 50 sec. 28
40R13.50x17 30 sec. 44 45 sec. 33 60 sec. 22
40R15.50x22 32 sec. 40 48 sec. 30 64 sec. 20
42R14.50x17 36 sec. 36 54 sec. 27 72 sec. 18
If you add 10 psi If you add 15 psi If you add 20 psi
Quantity of Tires Quantity of Tires Quantity of Tires
What's your tire size? Here is your inflation time: PT05 Tank PT10 Tank PT15 Tank PT20 Tank Here is your inflation time: PT05 Tank PT10 Tank PT15 Tank PT20 Tank Here is your inflation time: PT05 Tank PT10 Tank PT15 Tank PT20 Tank
275/70R16 16 sec. 21 42 63 84 24 sec. 12 24 36 48 32 sec. 10 21 31 42
295/70R17 18 sec. 20 40 60 80 27 sec. 11 22 33 44 36 sec. 10 20 30 40
285/75R17 18 sec. 20 40 60 80 27 sec. 11 22 33 44 36 sec. 9 20 30 40
33R12.50x17 19 sec. 19 38 57 76 29 sec. 10 20 30 40 38 sec. 9 19 28 38
305/70R17 20 sec. 18 36 54 72 30 sec. 10 20 30 40 40 sec. 9 18 27 36
315/70R17 21 sec. 17 34 51 68 32 sec. 9 18 27 36 42 sec. 8 17 25 34
35R12.50x17 20 sec. 16 32 48 64 30 sec. 9 18 27 36 40 sec. 8 16 24 32
35R12.50x15 22 sec. 14 28 42 56 33 sec. 9 18 27 36 44 sec. 7 14 21 28
37R12.50x17 25 sec. 14 28 42 56 38 sec. 9 18 27 36 50 sec. 7 14 21 28
40R13.50x17 30 sec. 11 22 33 44 45 sec. 7 14 21 28 60 sec. 5 11 16 22
40R15.50x22 32 sec. 10 20 30 40 48 sec. 6 12 18 24 64 sec. 5 10 15 20
42R14.50x17 36 sec. 9 18 27 36 54 sec. 6 12 18 24 72 sec. 4 9 13 18
If you add 10 psi
Quantity of Tires
What's your tire size? Here is your inflation time: One Power Shot bottle (20 oz)
26x10-10 15 sec. 10
27x10-12 19 sec. 8
29x9-12 21 sec. 7
30x10-12 25 sec. 6
31x10-12 30 sec. 5
32x10-12 50 sec. 3
If you add 10 psi
Quantity of Tires
What's your tire size? Here is your inflation time: Two Power Shot bottles (40 oz)
26x10-10 15 sec. 20
27x10-12 19 sec. 16
29x9-12 21 sec. 14
30x10-12 25 sec. 12
31x10-12 30 sec. 10
32x10-12 50 sec. 6

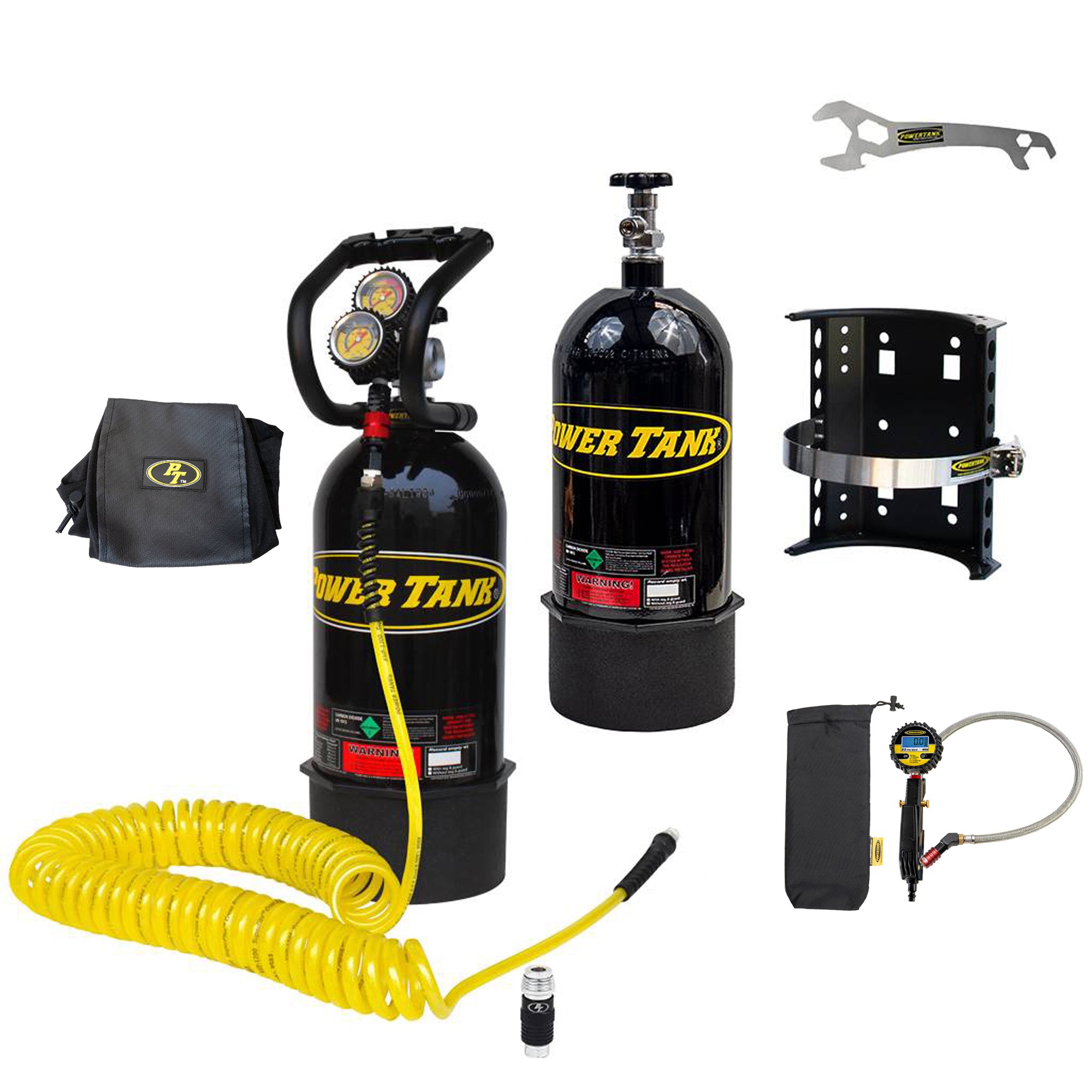

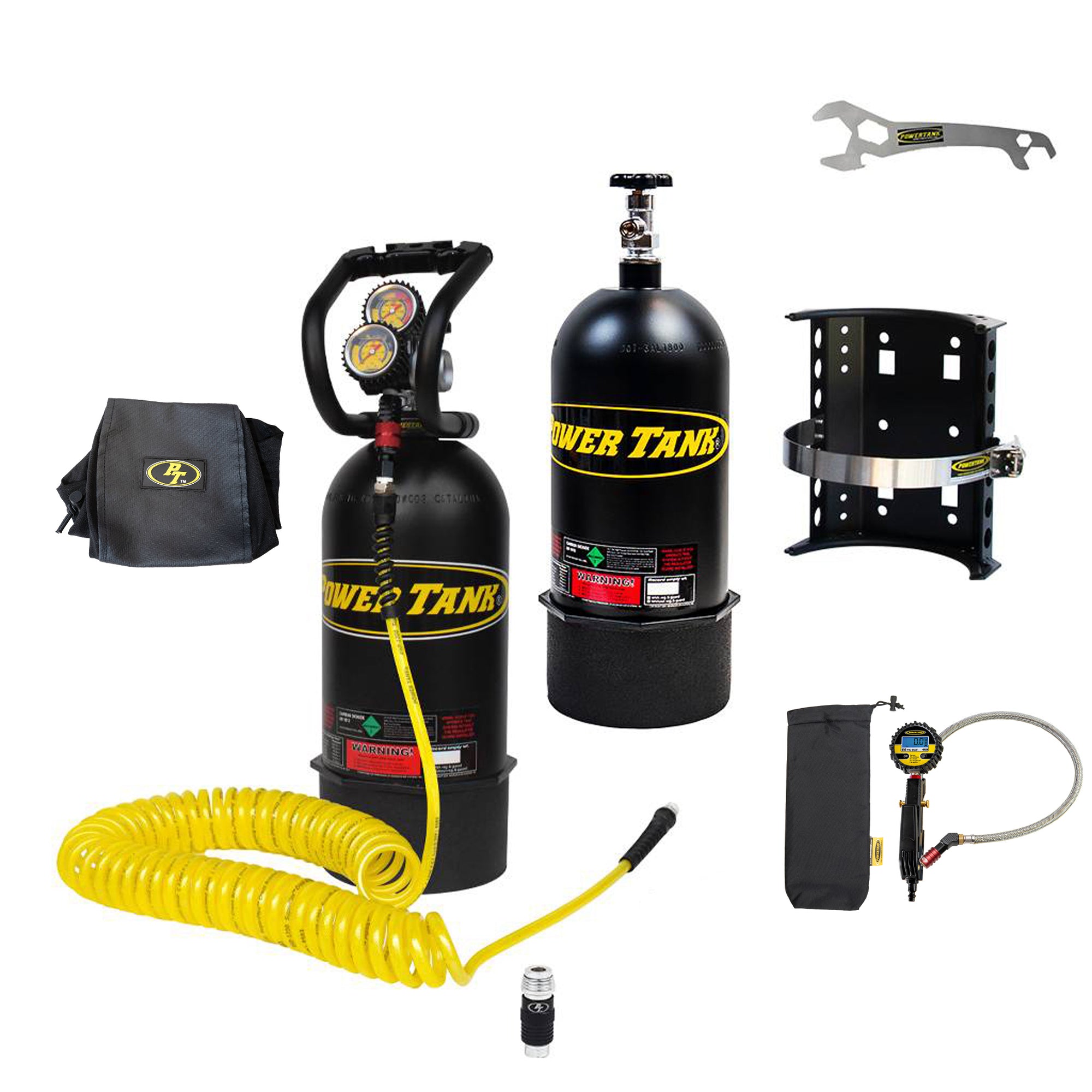

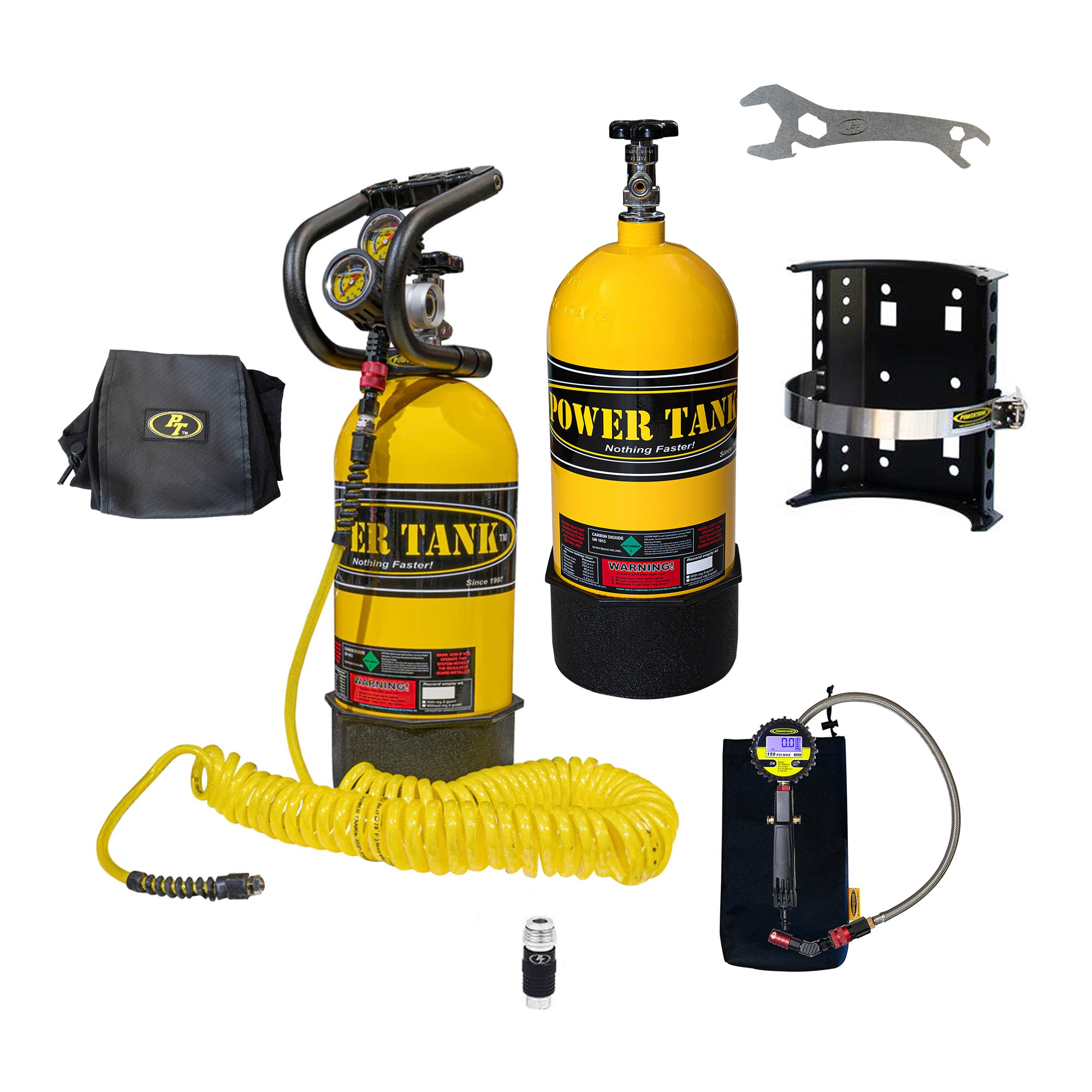

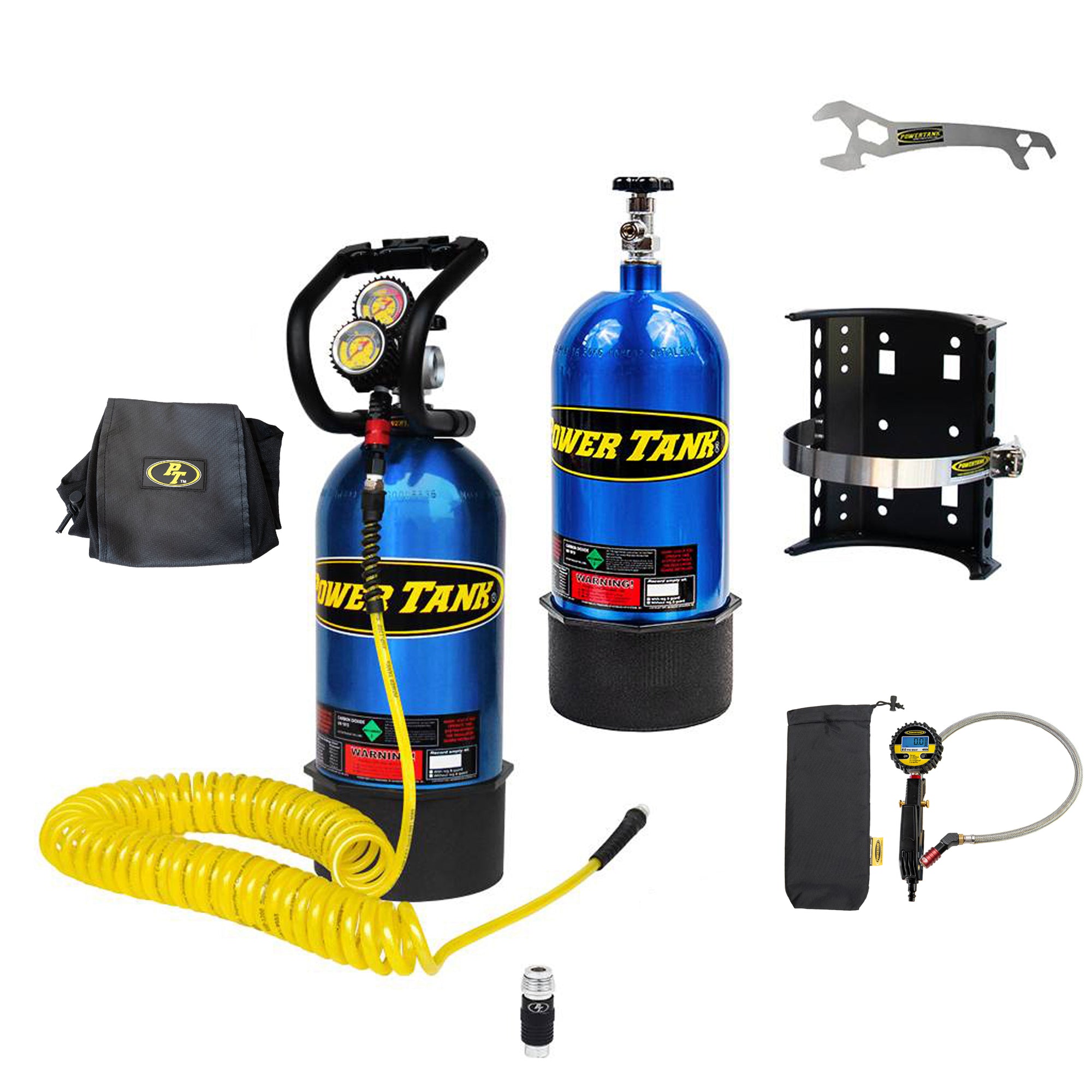

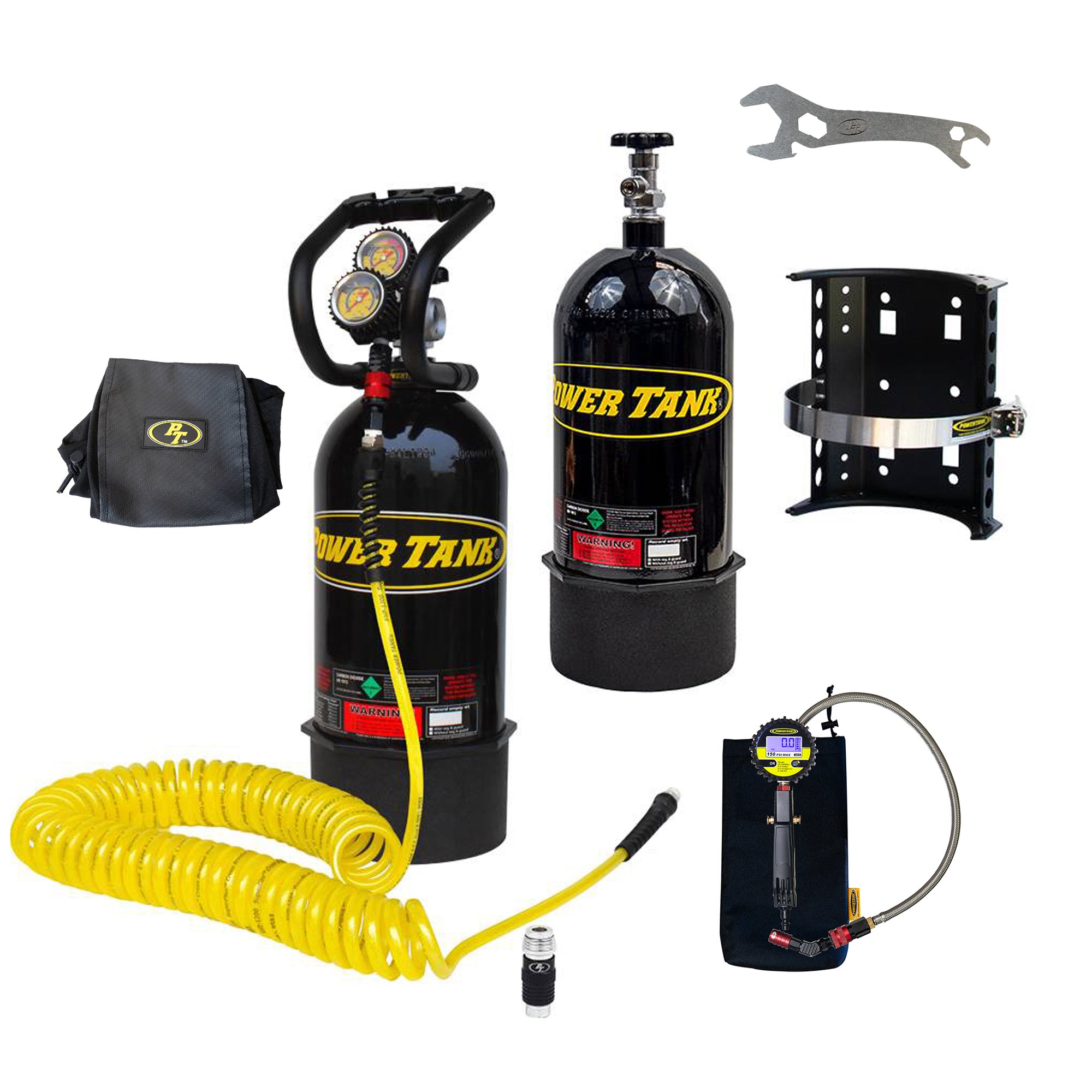

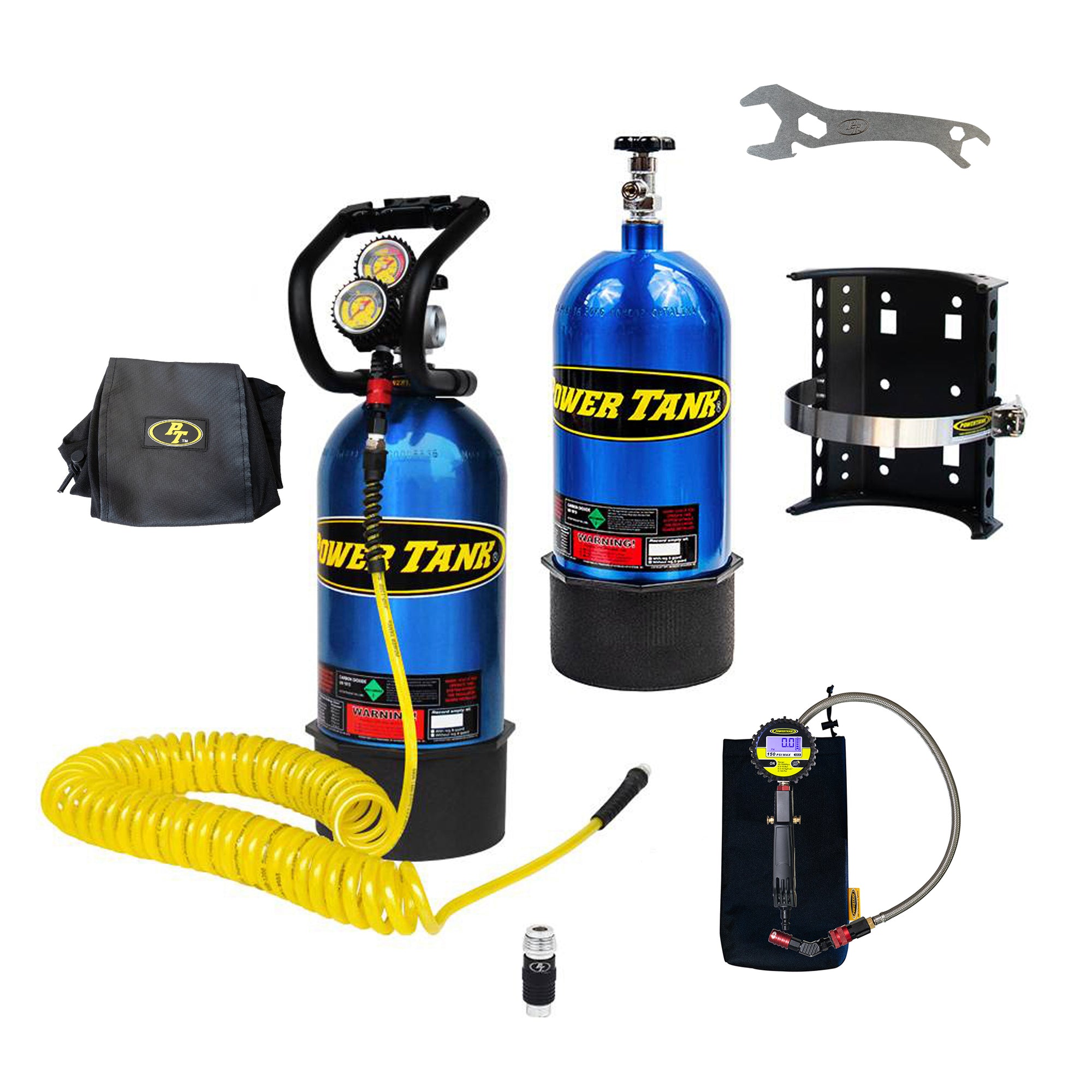

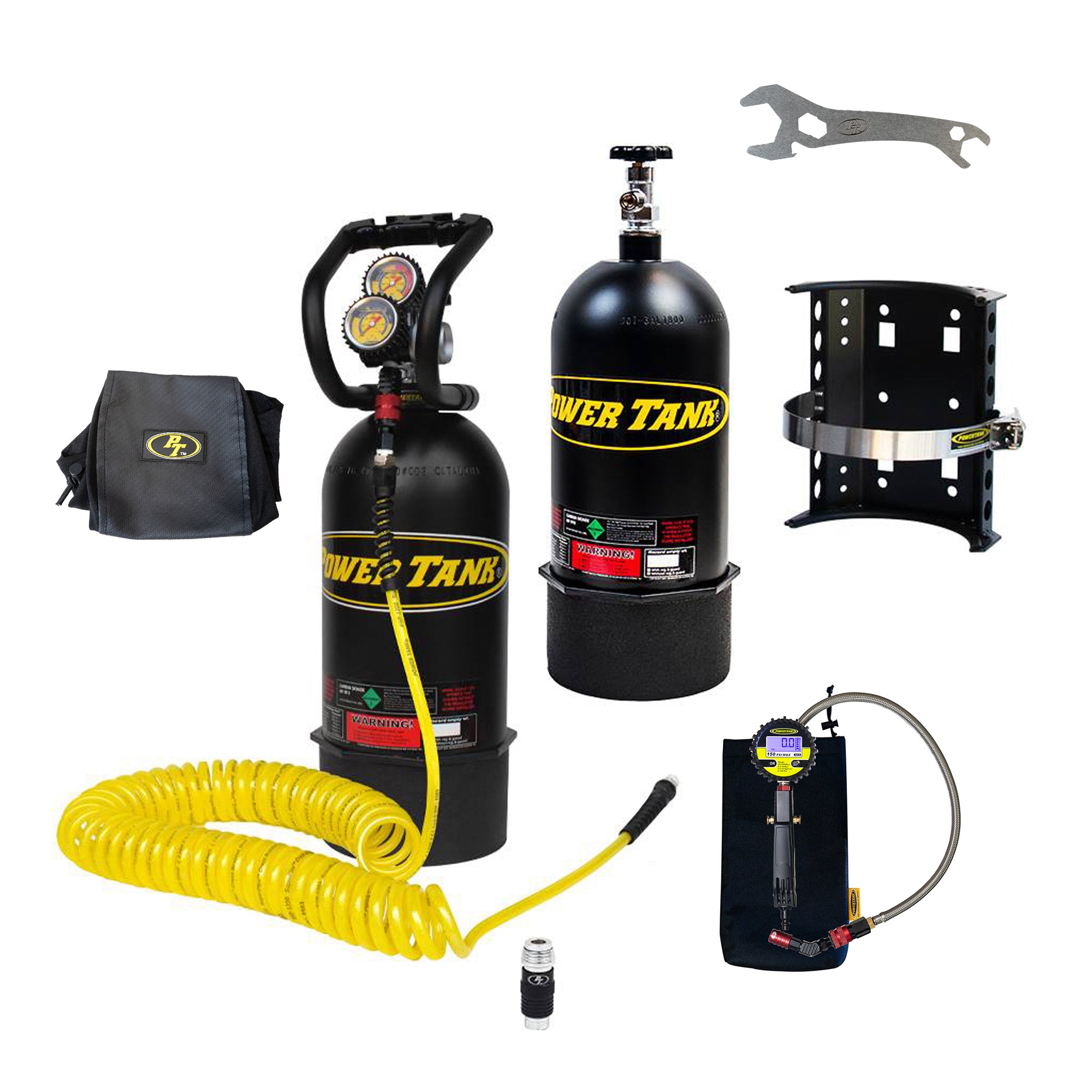

10 lb Rotation System (Package C) Power Tank

PT10-5280
  • Sale
  • Regular price $879.90



The 10 lb Rotation System, also known as a Package C, Power Tank is the ultimate Power Tank package. When one Power Tank bottle is empty, swap it out with a full spare ready and waiting at home. You get the benefit of carrying a smaller Power Tank with you to the trail and less 'gas anxiety' if you have back to back wheeling trips with limited time in between to fill your Power Tank. We call this the Rotation System and with a full tank always waiting at home, this kit is good for any tire size.

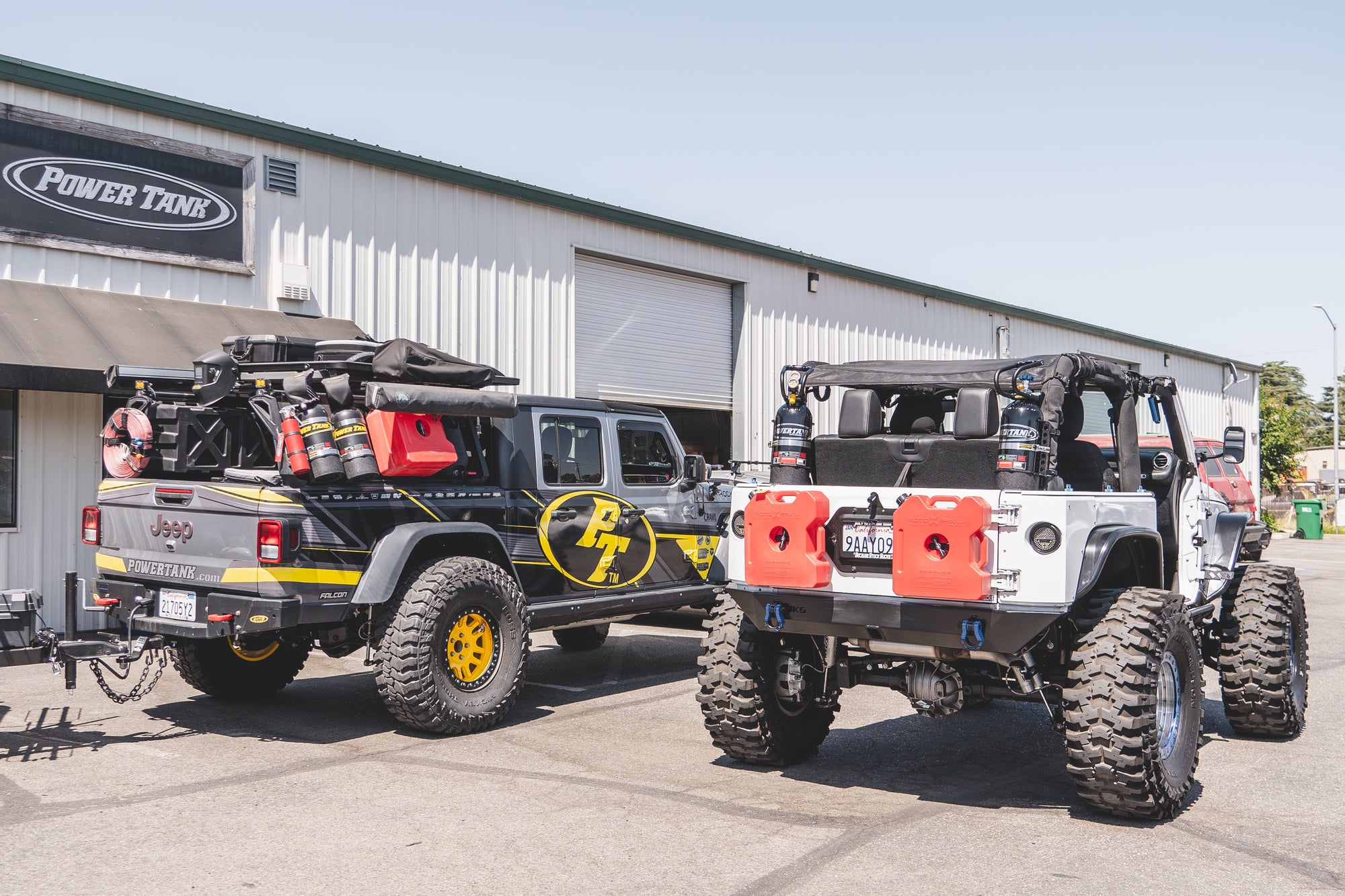

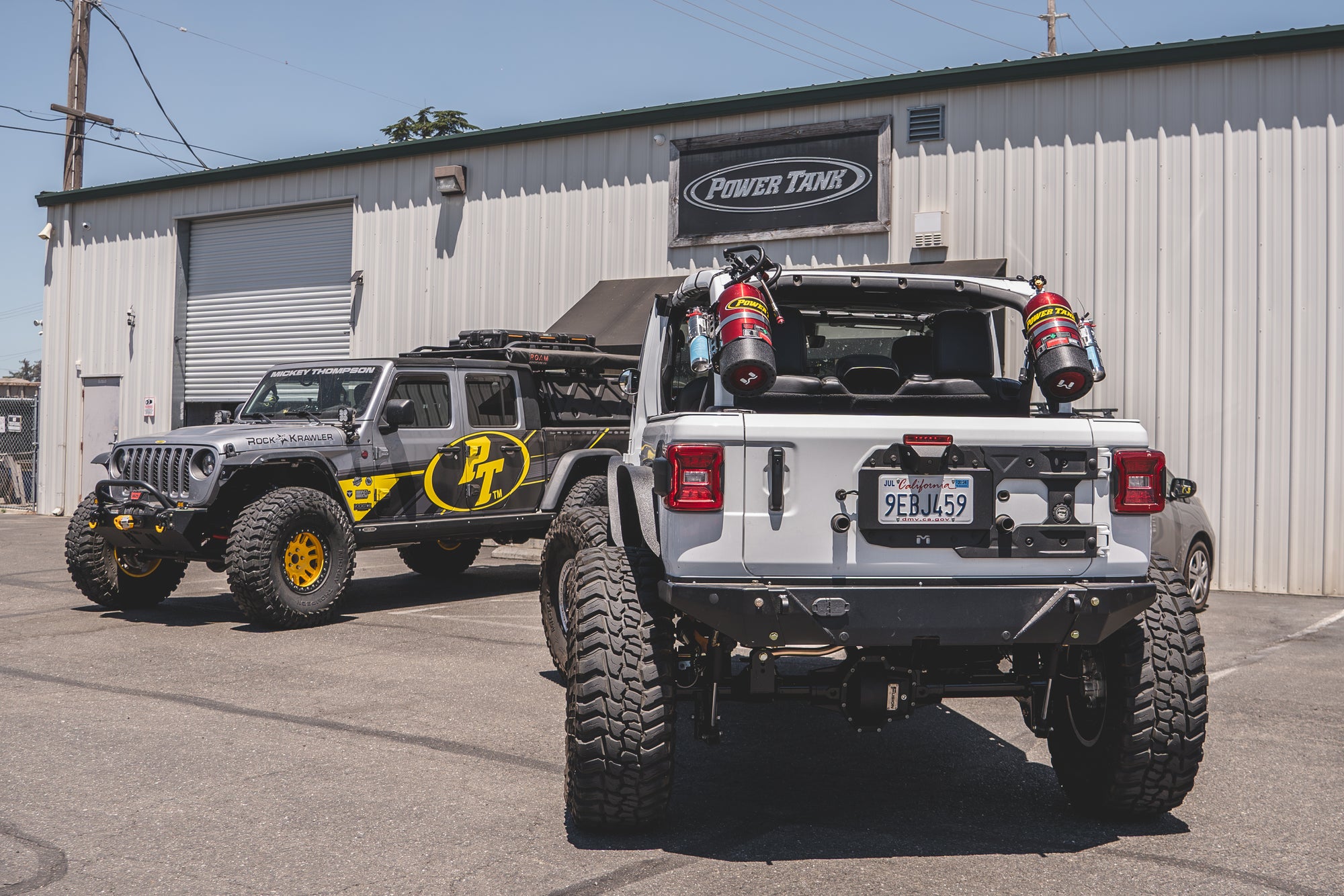

For mounted pictures, see our Mounting Ideas page.

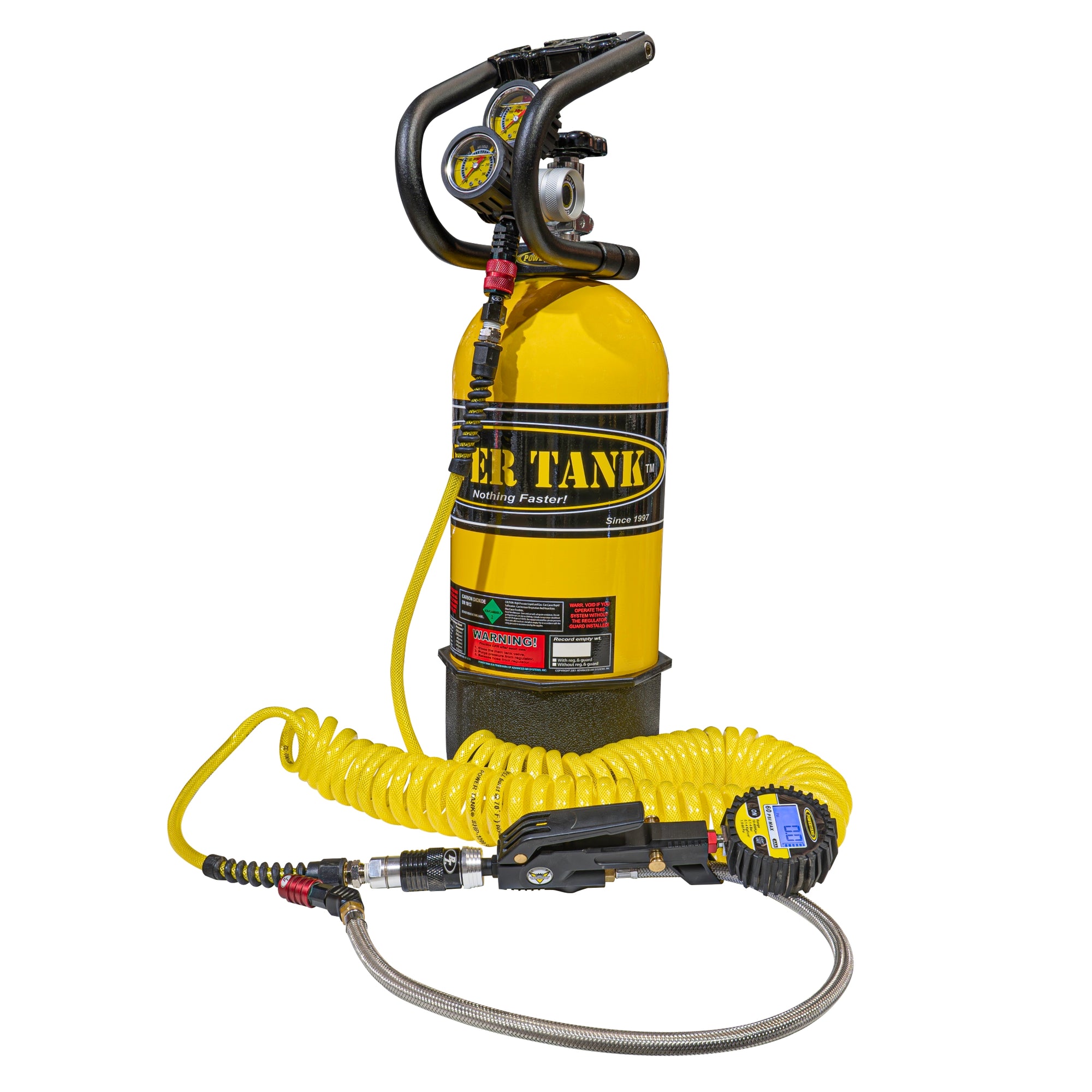

A Power Tank is the fastest and most powerful portable air solution. With the power of CO2 you can air up faster, reseat bigger tires (tested up to 46 in) safely, and run air tools at full power. To see what Power Tank performance looks like for your tire size, check out our tire air up chart. Based on tire size and amount of air you are adding, it will tell you how many tires you can fill on one tank and how quickly you can do it. As an example, you can air up from 15 psi to 25 psi on a 35 inch tire in 19 seconds and you can air up 30 tires before needing to refill your 10 lb Power Tank! The same size tank can also remove 360 lug nuts at 90 ft/lbs from a 1/2 in impact wrench before empty. Note that these numbers are for a single 10 lb Power Tank cylinder. Double the numbers to calculate for both cylinders in this kit. When your Power Tank is empty, take your tank to a local fire extinguisher service shop, welding supply store, or beverage carbonics shop, and have it refilled for about $15-$25.

The secret to this performance is Power Tank's Super Flow Regulators, adjustable regulator designed to maximize output pressure and flow rate simultaneously. Power Tanks boast a 45 cfm flow rate compared to the 5-6 cfm found in high-end 12v compressors. All Power Tank regulators are guaranteed to never freeze clog and are backed with a limited lifetime warranty. This is the only portable air system that will outlive the vehicle it's mounted to.

This incredible system mounts easily in just about any vehicle or you can swap out our Super Bracket for a Speed Bag to make storage even easier. The best part? This self-contained, compact system is portable and easily moved from vehicle to vehicle, walked down the trail to help a broken rig, or transported from the chase truck to the race car all without power cables or long air hoses to run.

This Package C system includes everything you need to run air tools with our advanced universal safety Super Coupler and air up tires through a dedicated HD Digital Tire Inflator Guage. It also comes with a Super Bracket that makes a great base mount by itself or pairs well with any of our 'piggy-back' mounts like our Roll Bar Clamps for JK Wranglers or our JL Wrangler Specific brackets. When your Power Tank is empty, use the included Power Wrench and 8mm allen wrench to move your handle and regulator over to your spare tank in about a minute.

Option Details

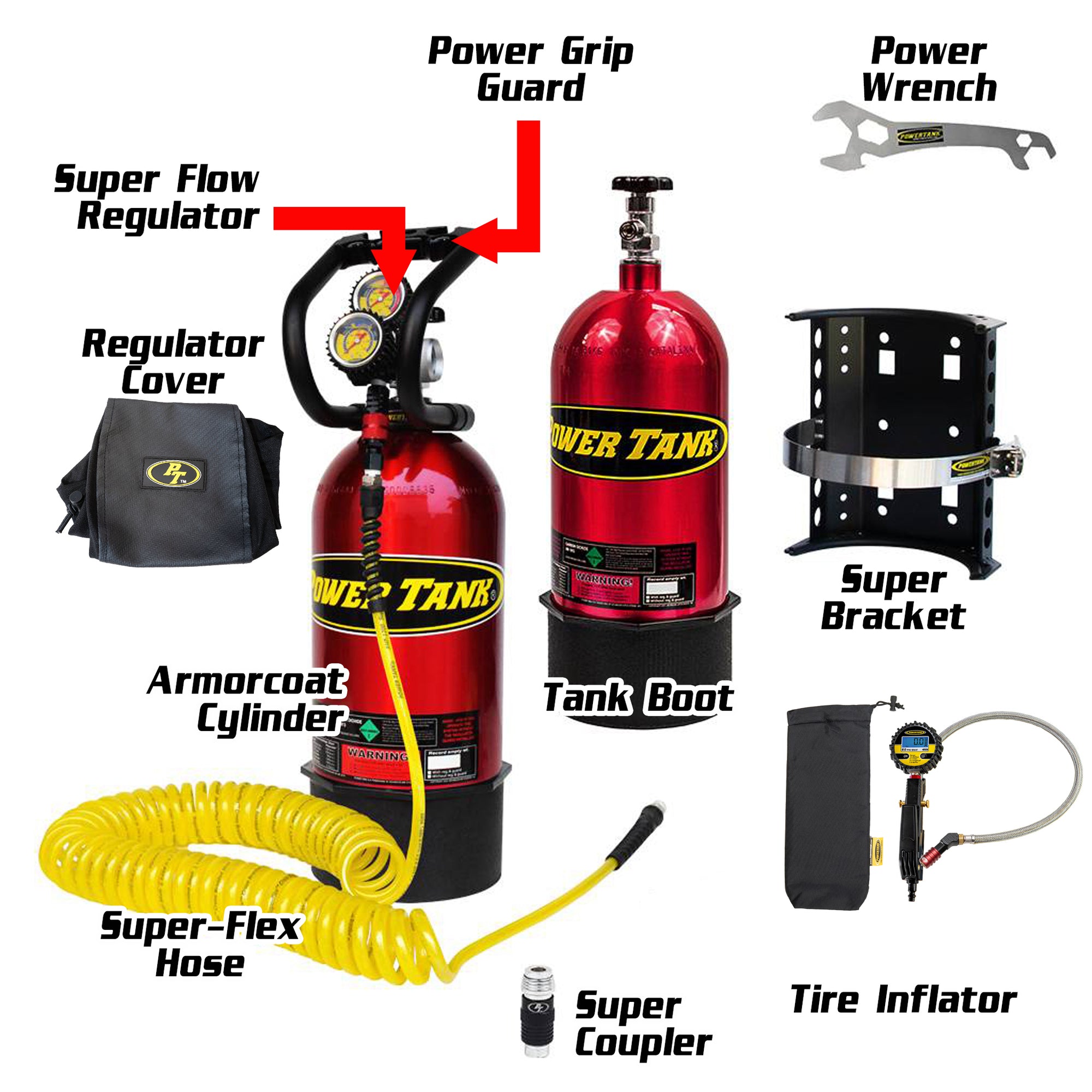

Includes:

  • Super Flow Regulator*
  • Power Grip Guard Handle*
  • (2) 10 lb Armorcoat CO2 Cylinder*
  • (2) Tank Boot
  • Super Flex Hose
  • Super Coupler
  • 10 lb/15 lb Super Bracket
  • Digital Tire Inflator**
  • Power Wrench
  • You save $131 in the Package C vs buying accessories separately

* Limited Lifetime Warranty
**5 year warranty

Click here for Power Tank Dimensions.
