10 lb. Track Pack Power Tank

Name: 10 lb. Track Pack Power Tank
Brand: Power Tank
SKU: TP10-5250
Price: 749.95 USD
Availability: InStock

TP10-5250

$749.95

Power Tank Tire Fills and Air Tool Use

On this page, you will find handy charts showing you how much performance you should expect from your Power Tank based on the task at hand and the size of your Power Tank.

Click here to try our new tire fill calculator!

Power Tank Dealer and Refiller Map

Enter in your tire dimensions and how much pressure you are adding to get a bespoke tire fill number!

4x4/Jeep Tires

This first Tire Air Up chart tells you how fast a Power Tank will air up YOUR tires and how many of them it will inflate based on the various Power Tank sizes. You'll notice that, unlike compressors, all Power Tanks regardless of their size, inflate at the same rate of speed.

First, locate your tire size in the left column. Then determine how much air you are adding from trail pressure to street pressure and find your section along the top row. Each section (10, 15, 20 psi) shows your air up time and how many tires you can fill based on your Power Tank size. Note that these numbers are fairly linear so if you need to calculate tires adding 30 psi, halve the amount shown in the 15 psi section.

	If you add 10 psi			If you add 15 psi			If you add 20 psi
		Quantity of Tires			Quantity of Tires			Quantity of Tires
What's your tire size?	Here is your inflation time:	PT10 Tank	PT15 Tank	Here is your inflation time:	PT10 Tank	PT15 Tank	Here is your inflation time:	PT10 Tank	PT15 Tank
275/70R16	16 sec.	41	61	24 sec.	27	41	32 sec.	20	30
295/70R17	18 sec.	33	49	27 sec.	22	33	36 sec.	16	25
285/75R17	18 sec.	32	49	27 sec.	22	32	36 sec.	16	24
33x12.50-17	19 sec.	37	55	29 sec.	25	37	38 sec.	18	28
305/70R17	20 sec.	30	46	30 sec.	20	30	40 sec.	15	23
315/70R17	21 sec.	28	42	32 sec.	19	28	42 sec.	14	21
35x12.50-17	21 sec.	31	47	30 sec.	21	31	40 sec.	16	24
37x12.50-17	25 sec.	27	40	38 sec.	18	27	50 sec.	13	20
40x13.50-17	30 sec.	20	30	45 sec.	14	20	60 sec.	10	15
42x13.50-20	36 sec.	19	29	54 sec.	13	19	72 sec.	10	15

SxS/UTV Tires

This chart of common SxS tires shows how many tires you can air up using a single Power Shot bottle, two Power Shot bottles, and a 5 lb Power Tank.

	If you add 10 psi
		Quantity of Tires
What's your tire size?	Here is your inflation time:	One Power Shot bottle (20 oz)	Two Power Shot bottles (40 oz)
26x10-10	15 sec.	8	16
27x10-12	19 sec.	8	16
29x9-12	21 sec.	7	14
30x10-12	25 sec.	6	12
31x10-12	30 sec.	5	10
32x10-12	50 sec.	3	6

Nail Gun Capacities			Quantity of nails that can be shot from various Power Tank sizes
Nail Gun Model	Nail Size	Material & Thickness	20 oz (PT01)	5 lb (PT05)	10 lb (PT10)	15 lb (PT15)	20 lb (PT20)
Hitachi NR90AE	16d	Doug. Fir 4x6	110	440	880	1320	1760
Hitachi NR83A Framing Nailer	8d	1/2-inch Plywood + Stud	190	750	1500	2250	3000
Senco SFN40 Finish Pro Nailer	15ga x 2.5 (DA25)	Maple	375	1500	3000	4500	6000
Senco SLP20 Brad Finish Nailer	18ga x 1.5	Various	750	3000	6000	9000	12000
Bostich Coiled Roofing Nail Gun	1.5" coiled	1/2" OSB or CDX	300	1200	2400	3600	4800

Impact Wrench

This last chart lists the amount of lug nuts you can remove or put on using a 1/2 inch impact wrench. Note that even the smallest 20 oz system has enough output pressure to run the tool at full power.

Removing lug nuts torqued to 90 ft/lbs	20 oz (PT01)	5 lb (PT05)	10 lb (PT10)	15 lb (PT15)	20 lb (PT20)
IR231 1/2" Impact Wrench	45	180	360	540	720

NEW! All Track Pack systems now come standard with our 10 foot Super Flex coiled hose. It packs away faster than the 30 ft hose and we found the Track Pack works best with a short hose when the Power Tank is close to you, reducing the chance of a pulled hose knocking over the Power Tank. The 30 ft coiled hose may still appear in images.

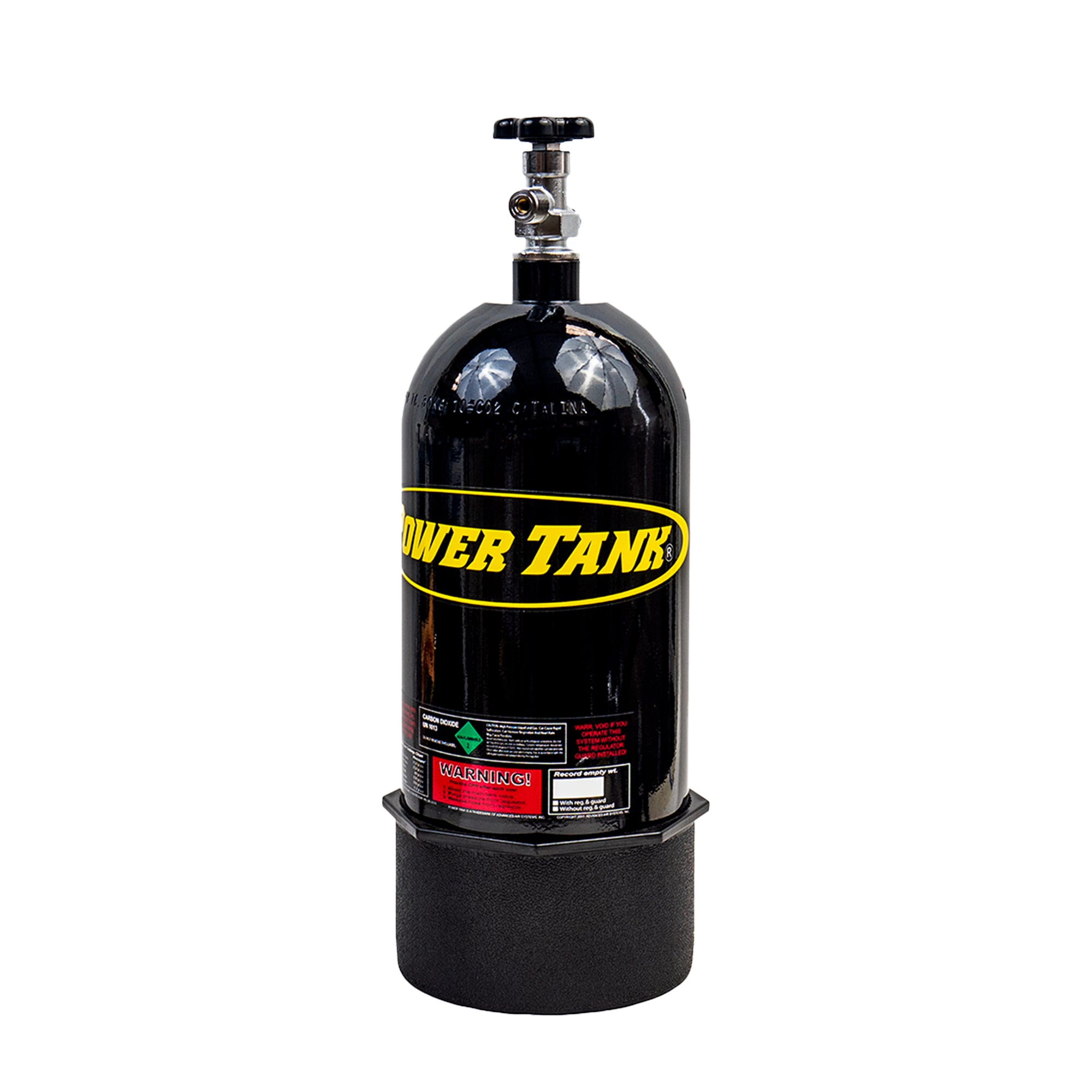

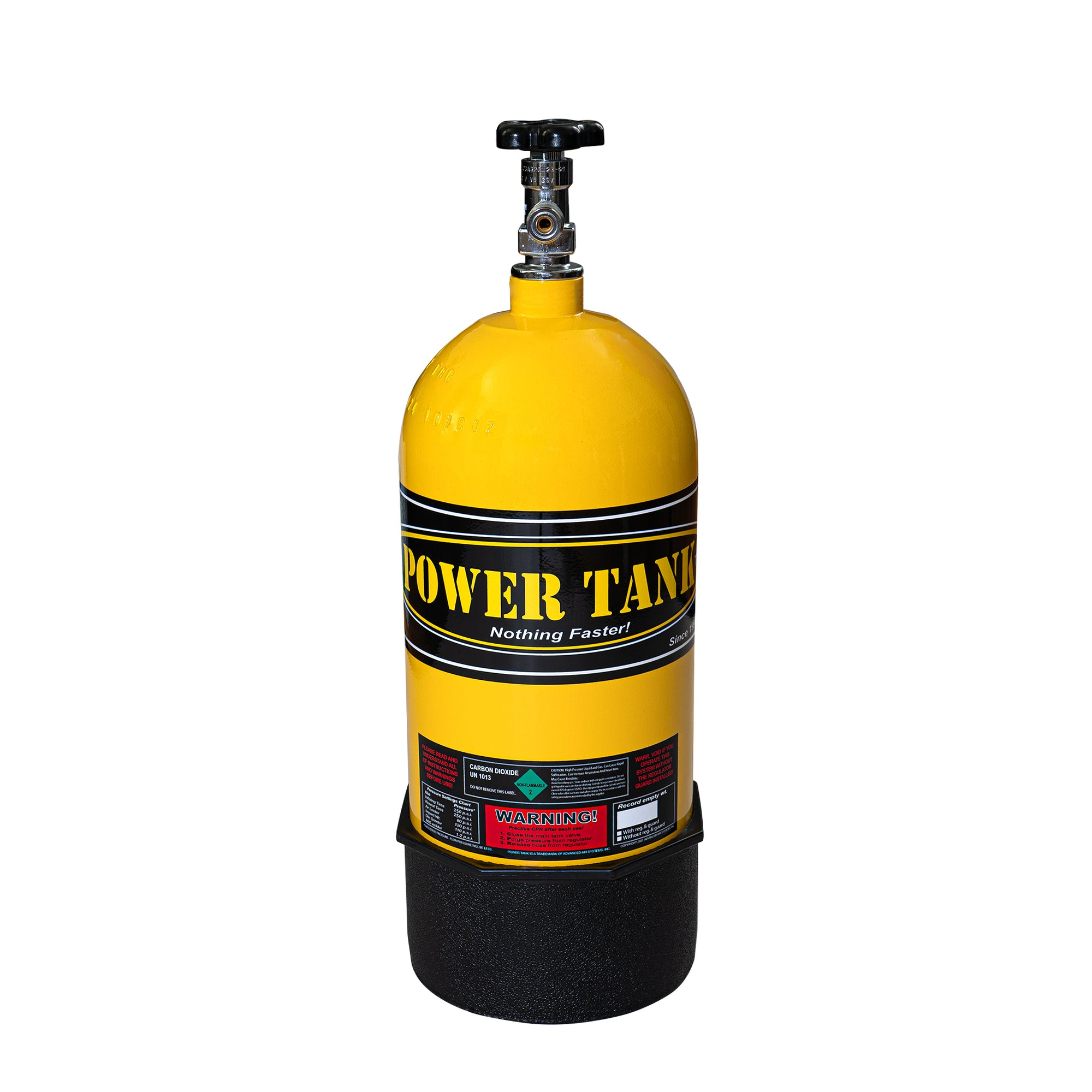

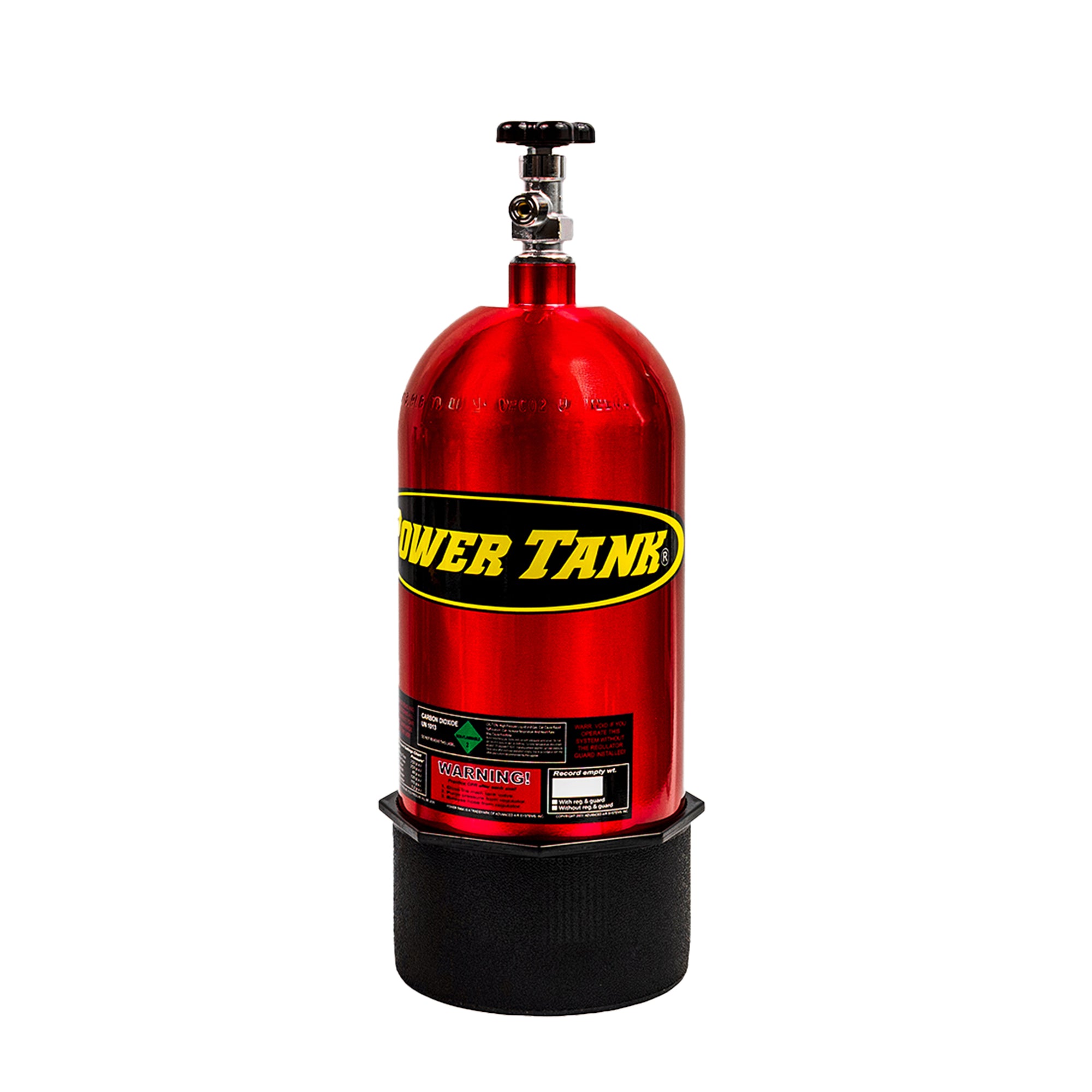

The 10 lb. Track Pack Power Tank is based on our best selling Package B but trades the hard mount bracket for a padded Speed Bag. It is the perfect Power Tank size for trail rigs with up to 35 in. tires and includes accessories not found in the Package A that will make using your Power Tank faster and more convenient.

A Power Tank is the fastest and most powerful portable air solution. With the power of CO2 you can air up faster, reseat bigger tires (tested up to 46 in.) safely, and run air tools at full power. To see what Power Tank performance looks like for your tire size, check out our tire air up chart. Based on tire size and amount of air you are adding, it will tell you how many tires you can fill on one tank and how quickly you can do it. As an example, you can air up from 15 psi to 25 psi on a 35 in. tire in 19 sec. and you can air up 30 tires before needing to refill your 10 lb. Power Tank! The same size tank can also remove 360 lug nuts using a 1/2 in. impact wrench before empty. When it's empty, take your tank to a local fire extinguisher service shop, welding supply store, or beverage carbonic shops, and have it refilled for about $15-$25.

The secret to this performance is Power Tank's Super Flow Regulators, adjustable regulator designed to maximize output pressure and flow rate simultaneously. Power Tanks boast a 45 cfm flow rate compared to the 5-6 cfm found in high-end 12v compressors. All Power Tank regulators are guaranteed to never freeze clog and are backed with a limited lifetime warranty. This is the only portable air system that will outlive the vehicle it's mounted to.

This incredible system weighs only 26 lb. when full and is portable and easily moved from vehicle to vehicle, walked down the trail to help a broken rig, or transported from the chase truck to the race car all without power cables or long air hoses to run.

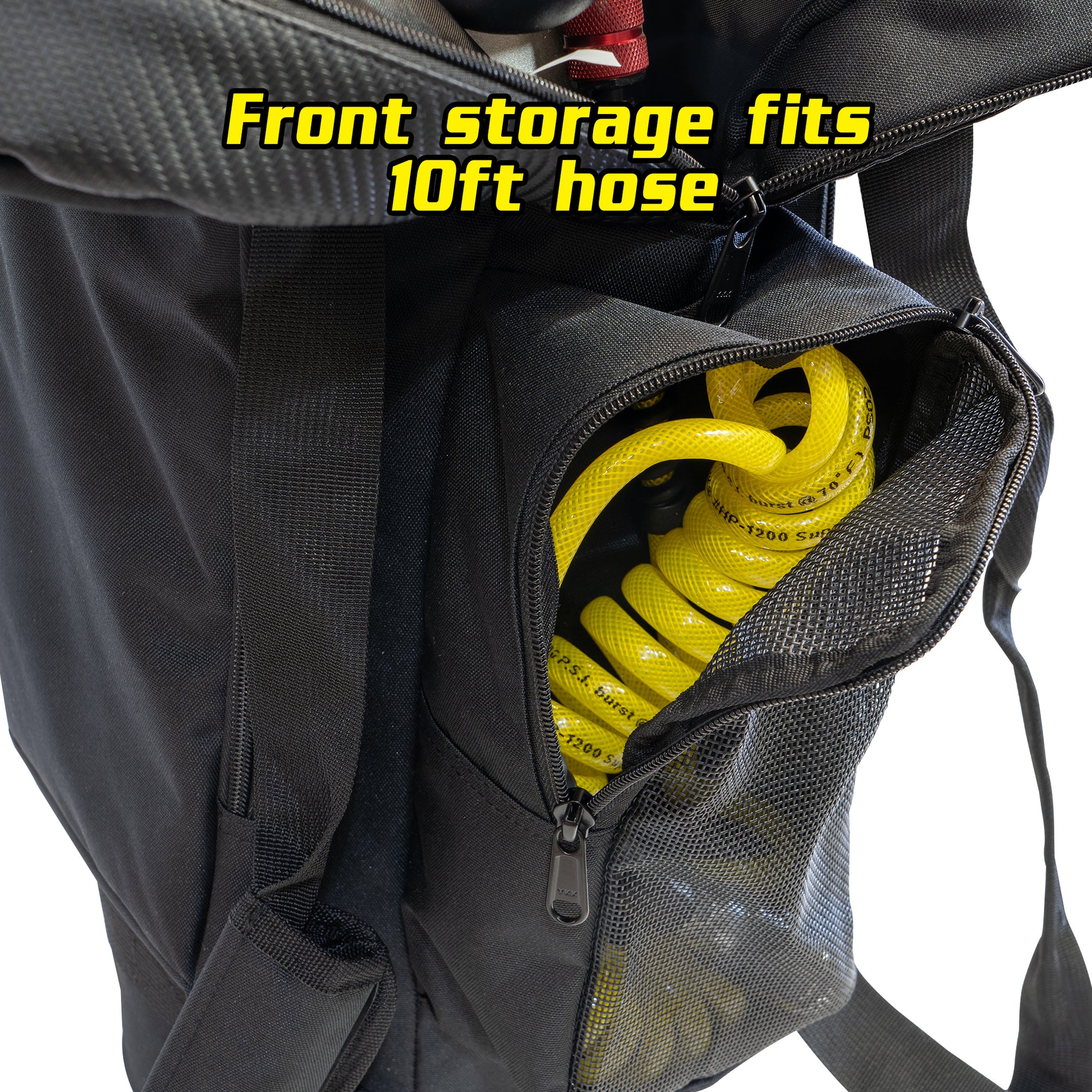

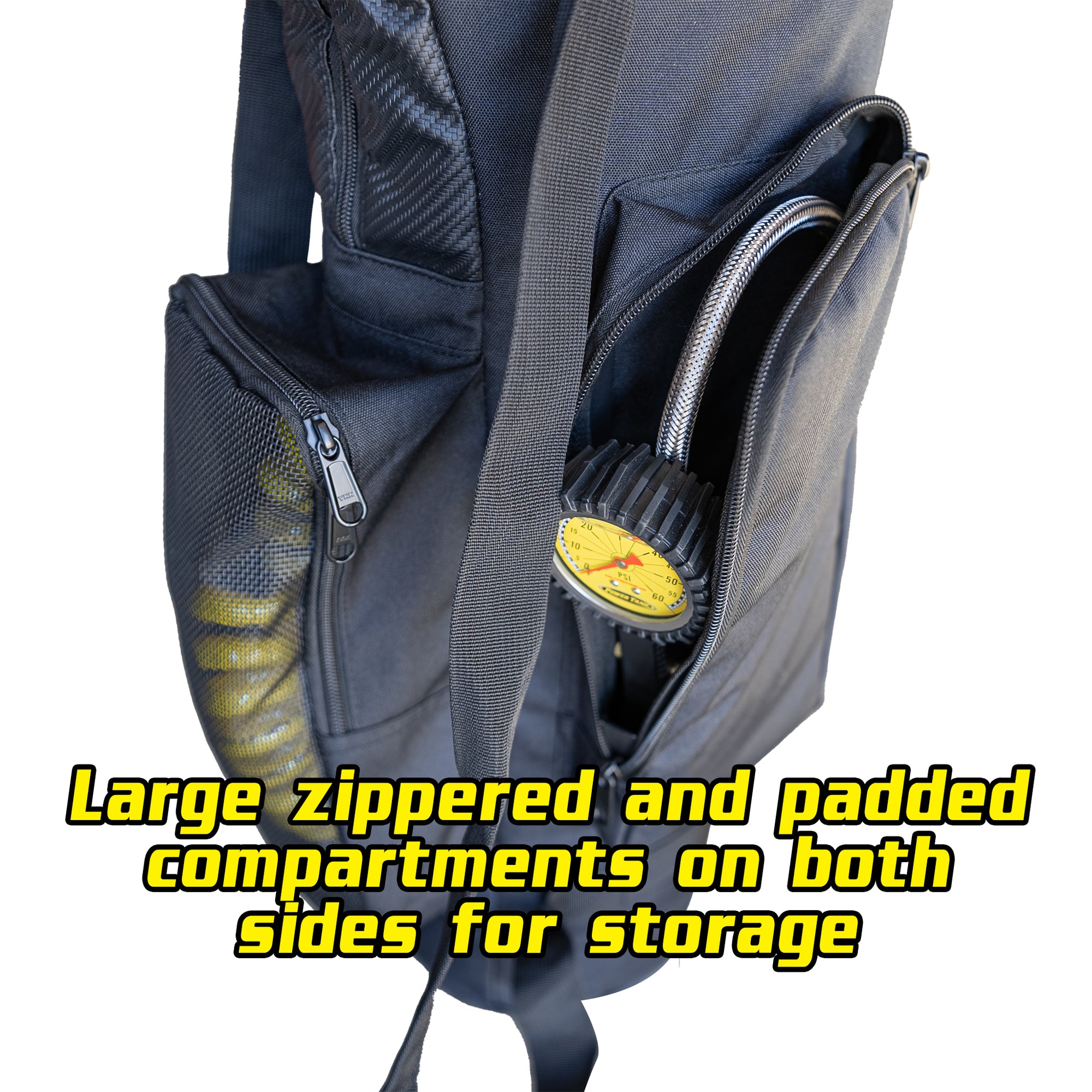

This Track Pack system includes everything you need to run air tools with our advanced universal safety Super Coupler and air up tires through a dedicated HD Tire Inflator with Gauge. It also includes a Speed Bag for easy transport of your Power Tank, hose, and accessories.

Option Details

Regulator Options
Tire Inflator Options
Six Shooter Options

Includes:

Super Flow Regulator HP250i* or XP400 Pro*
Power Grip Guard Handle*
10 lb. Armorcoat CO2 Cylinder*
Tank Boot
Super Flex Hose 10 ft. Coiled
Super Coupler
10 lb. Speed Bag
HD Tire Inflator with Gauge**
You save $80 by bundling the accessories in Package B

* Limited Lifetime Warranty
**5 year warranty

Click here for Power Tank Dimensions.

Option Details

Includes:

Super Flow Regulator HP250i* or XP400 Pro*
Power Grip Guard Handle*
10 lb. Armorcoat CO2 Cylinder*
Tank Boot
Super Flex Hose 10 ft. Coiled
Super Coupler
10 lb. Speed Bag
HD Tire Inflator with Gauge**
You save $80 by bundling the accessories in Package B

* Limited Lifetime Warranty
**5 year warranty

Height with handle: 24"

Diameter of bottle: 6.9"

Empty Weight: ~17 lbs

Full Weight: ~27 lbs

Useable Energy Equivalent: 400 gal @ 150 psi

Power Grip Guard Handle: 6061 aluminum

Armorcoat Bottle: Aluminum w/ Nickel Plated Valve

Buy it with

Pro Series Tire Repair Kit

$65.95

Master Blaster Blow Gun Kit

$44.95

Add a Vehicle Mount!

Air up 18 (35") tires

That's four trips plus some CO2 left in reserve for reseating tires or blowing out dirt and dust from your rig.

38 seconds to air up a 35x12.50x17" tire by 15 psi (15 psi trail to 30 psi street pressure)

Click here for the full air up chart

Need more tires? Consider a larger tank or a second bottle.

The Power Tank Difference

Super Flow Regulator

Super Flow adjustable regulators are made for both high flow and high pressures and are designed to NEVER freeze clog. Fully rebuildable and backed by a limited lifetime warranty.

Power Grip Guard Handle

Beware of copycats! All Power Tank handles are machined from 6061 aluminum to protect the valve and regulator from impacts. Limited lifetime warranty.

Armorcoat CO2 Tank

All Power Tank bottles come in a durable armorcoat finish and are backed by a limited lifetime warranty. If it fails its 5 year recert test, we replace it for free.

Super Flex Hose

Super Flex hoses are made for CO2, featuring a 400 psi WP, 1200 psi burst pressure, and high quality swivels at both ends. Doesn't shatter when cold.

Super Coupler

Connect and disconnect your tools at 0 psi, regardless of the pressure in your hose. Accepts any air tool plug style. Compact aluminum construction is rebuildable.

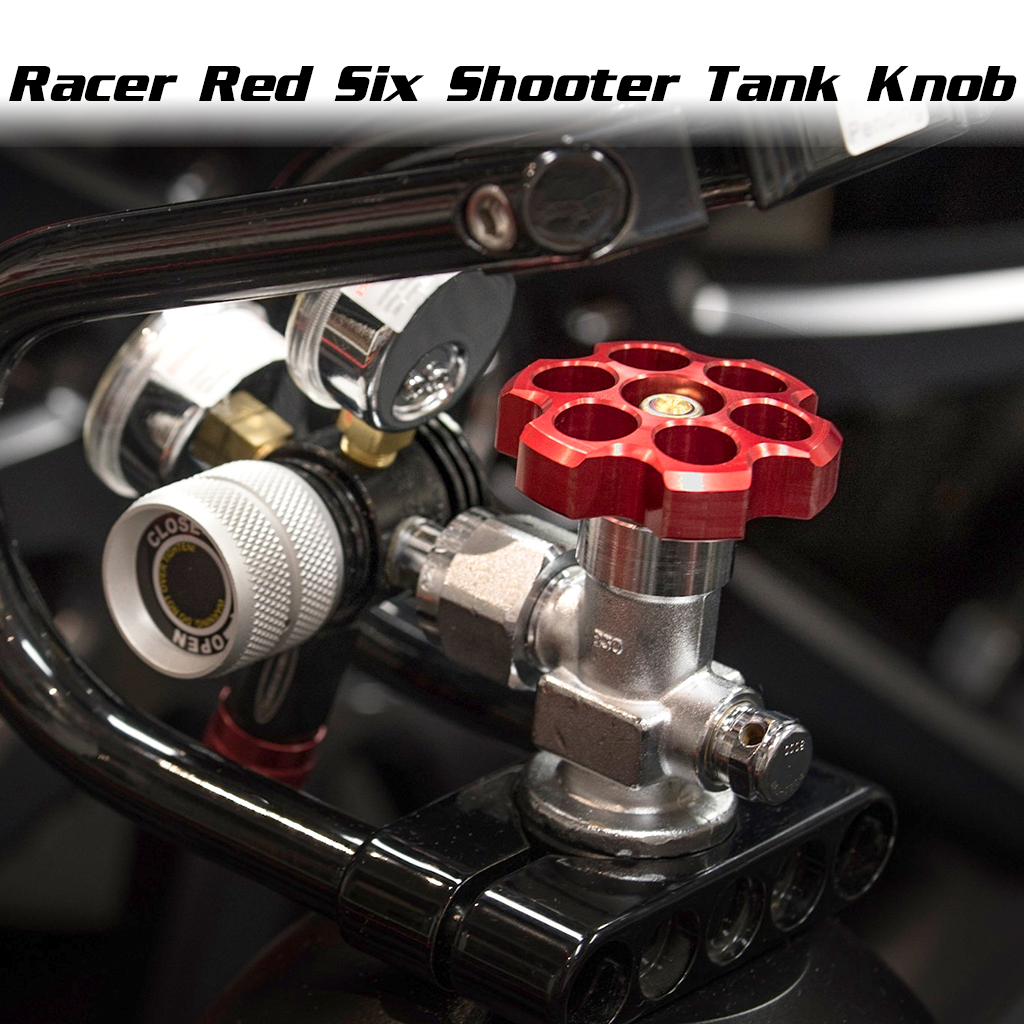

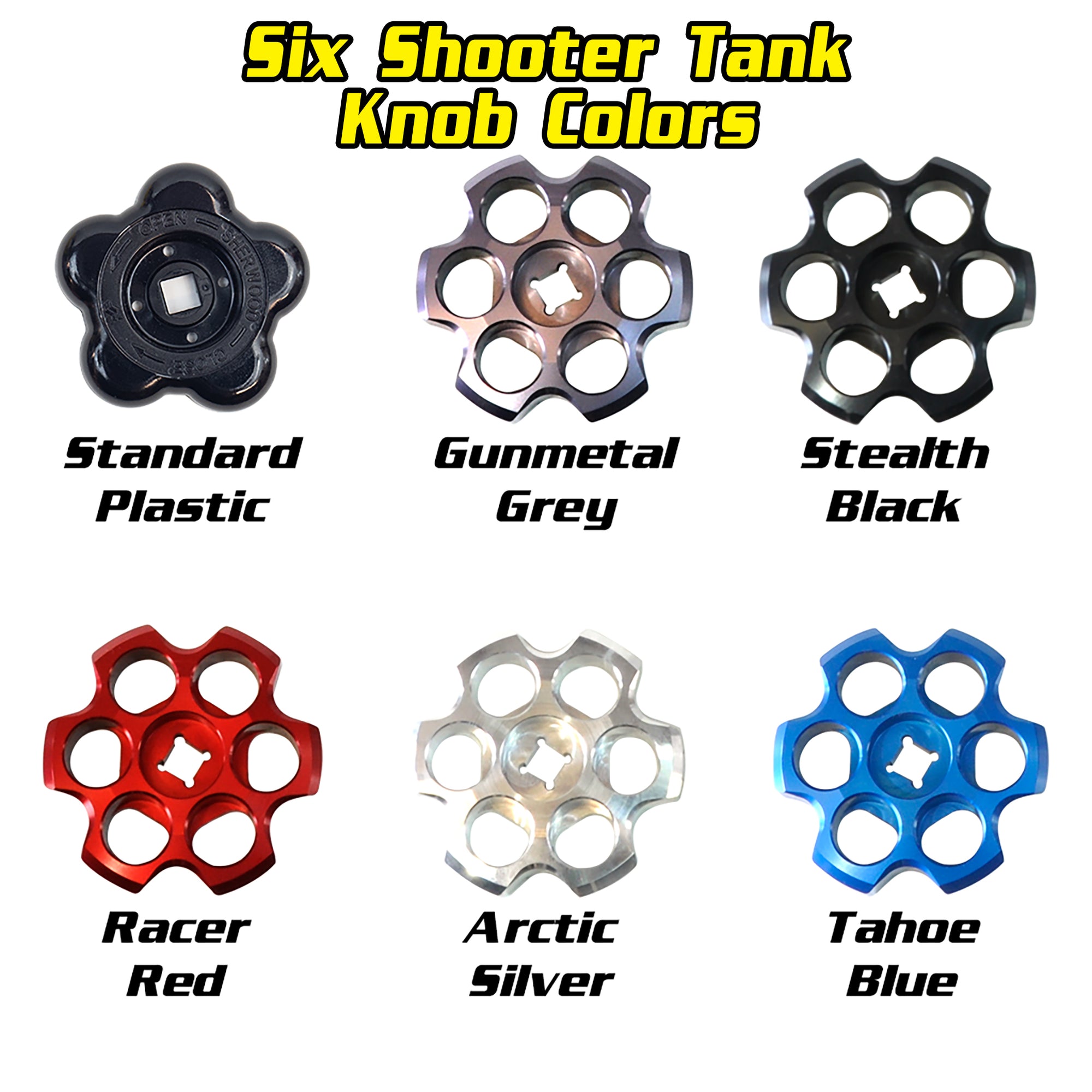

Six Shooter Knob

Upgrade the standard polycarbonate knob with an anodized billet knob that feels great in the hand and looks killer.

Super Bracket

The Super Bracket has race-proven strength and reliability while being lightweight and easy to install when paired with a vehicle mount.

Protection

All Power Tanks include a Carbon Regulator Cover* to keep your Power Tank looking nice and functioning well for years. *Does not apply to packages with Speed Bags
